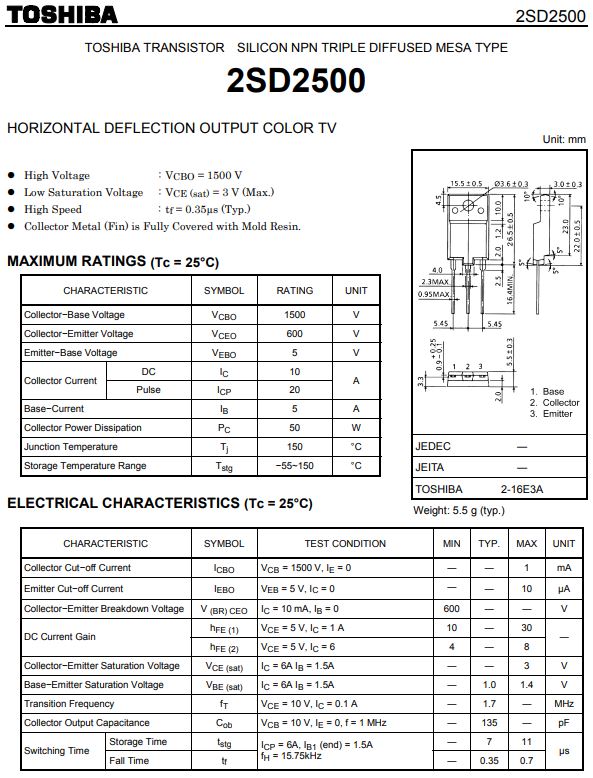

2SD2500 TRANSISTOR D2500
2SD2500 TRANSISTOR D2500
GO Company Product Code: 2SD2500
Description: 2SD2500 NPN TRANSISTOR
Type of Transistor: -
Type Designator: D2500
SMD Transistor Code: 2SD2500
Material of Transistor: Si
Polarity: NPN
Maximum Collector Power Dissipation (Pc): 50 W
Maximum Collector-Base Voltage |Vcb|: 1500 V
Maximum Collector-Emitter Voltage |Vce|: 600 V
Maximum Emitter-Base Voltage |Veb|: 5 V
Maximum Collector Current |Ic max|: 10 A
Max. Operating Junction Temperature (Tj): 150 °C
Transition Frequency (ft): 1.7 MHz
Forward Current Transfer Ratio (hFE), MIN: 10
Noise Figure, dB: -
Brand: TOSHIBA
Package: TO3PHIS
6 left in stock, ready to GO!
