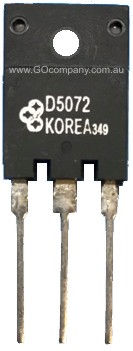

2SD5072 TRANSISTOR D5072
2SD5072 TRANSISTOR D5072
GO Company Product Code: 2SD5072

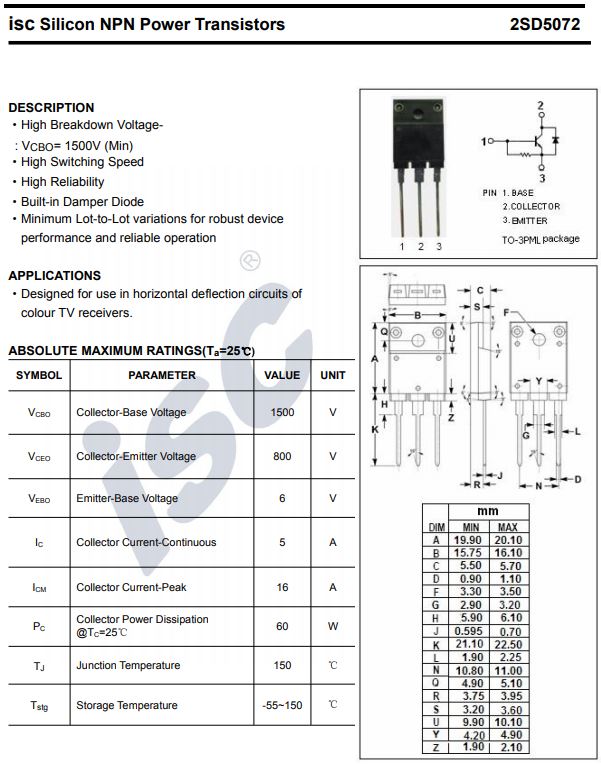

Description: 2SD5072 NPN TRANSISTOR
Type of Transistor: -
Type Designator: D5072
SMD Transistor Code: 2SD5072
Material of Transistor: Si
Polarity: NPN
Maximum Collector Power Dissipation (Pc): 60 W
Maximum Collector-Base Voltage |Vcb|: 1500 V
Maximum Collector-Emitter Voltage |Vce|: 800 V
Maximum Emitter-Base Voltage |Veb|: 6 V
Maximum Collector Current |Ic max|: 5 A
Transition Frequency (ft): 3 MHz
Forward Current Transfer Ratio (hFE), MIN: 8
Noise Figure, dB: -
Brand: SAMSUNG
Package: TO3PML
3 left in stock, ready to GO!
