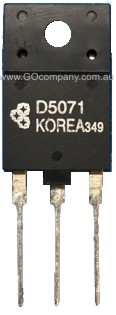

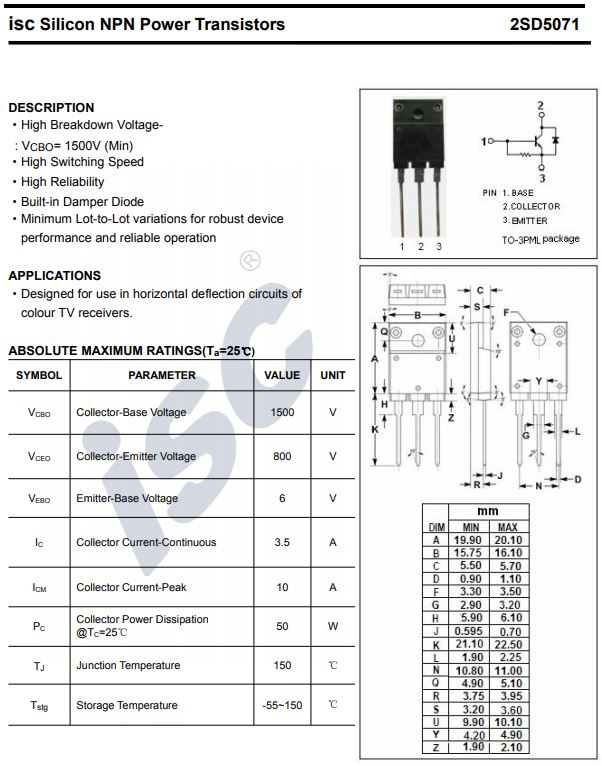

2SD5071 TRANSISTOR D5071
2SD5071 TRANSISTOR D5071
GO Company Product Code: 2SD5071
Description: 2SD5071 NPN TRANSISTOR
Type of Transistor: -
Type Designator: D5071
SMD Transistor Code: 2SD5071
Material of Transistor: Si
Polarity: NPN
Maximum Collector Power Dissipation (Pc): 50 W
Maximum Collector-Base Voltage |Vcb|: 1500 V
Maximum Collector-Emitter Voltage |Vce|: 800 V
Maximum Emitter-Base Voltage |Veb|: 8 V
Maximum Collector Current |Ic max|: 3.5 A
Max. Operating Junction Temperature (Tj): 150 °C
Transition Frequency (ft): 3 MHz
Forward Current Transfer Ratio (hFE), MIN: 8
Noise Figure, dB: -
Brand: SAMSUNG
Package: TO3PML
44 left in stock, ready to GO!
